Aquarium Air Pump Size: Two Numbers, Not One Gallon Band

Depth sets the pressure, volume sets nothing

Depth, not the gallon band printed on the box, is what a pump actually has to overcome at the stone. A 40-gallon breeder 16 inches deep asks less pressure than a 40-gallon tall at 24 inches, from the same rated volume. No source captured here quantifies that difference.

Built from published specs, hobbyist builds and forum-documented results, with sources named in the text. Links may earn a commission, which has no bearing on what gets recommended.

Charterhouse Aquatics sizes pumps by volume band: nano to 40 litres, small 40–100, medium 100–250, large 250–500, extra-large above that. That set of bands is itself contested. Bubble Magus, on the same question, says depth matters as well and that deeper tanks need a more powerful pump because air must be pushed down against head pressure. Both are describing the same pump. Only one of them is describing the constraint that stops it working.

Here is what is at stake. If you buy on gallons and your tank is tall, the depth the air must be pushed against is not accounted for; no source captured here establishes what that does to a diaphragm pump's service life. This piece sizes pumps by the pressure they have to overcome: static head from depth, plus whatever the diffuser adds. The seven pumps here are compared on published specifications, not on measurement.

One correction worth carrying through everything that follows: an air pump moves no water. Charterhouse Aquatics puts it plainly. Circulation comes from rising bubbles dragging surface water down through the tank. Flow is a side effect of pressure won.

The short version

• The pick: AQUASMITH, for a shallow desktop or nano tank in a bedroom, where the pump has to disappear both visually and audibly.
• Also worth it: Tetra Whisper, for a standard 20-40 gallon community tank where the buyer wants a named-brand pump sized by the box rather than by pressure figures.
• How this was decided: published specifications and buyer reports across 7 products, compared below.

The depth-pressure table, plus what your air stone adds to it

Diffuser type as well as depth affects what a pump has to push against. Neither source captured here publishes a figure for it.

Measure to the stone, not to the rim: a 24-inch tank with the stone on the substrate and some freeboard gives less head than the tank height suggests. No source captured here states head pressure ratings or a maximum operating depth for any pump.

Now the diffuser. Bubble Magus states that deeper tanks need a more powerful pump because the air is pushed down against head pressure; the diffuser is the part nobody adds to that sum. How much any given stone or disc adds is not something any source captured here quantifies.

This is where the gallon band on the box starts to lose meaning. Where depth is the binding constraint, a rated pressure or stated maximum depth is more informative than the volume figure. But no source captured here specifies a depth at which the bands stop applying, and no named pump's own rated pressure was captured either.

Why does the '20 GPH for 20 gallons' rule mislead you?

Take two 20-gallon tanks, one standard and one tall. Same volume, same stocking, same rule of thumb, and yet the deeper one asks the pump to push air down further. The rule cannot see that difference, because volume is the only number it takes.

That is the flaw. The turnover version of the advice, quoted by Bubble Magus as at least the tank's volume in air per hour, roughly 20 GPH of air for a 20-gallon tank, expresses air output in a unit borrowed from water turnover, a mismatch no source explains or defends. It is also contested, and no source reconciles it with the volume-band method.

The band system has the same blind spot from a different angle. Charterhouse Aquatics sets the bands at nano up to 40 litres, small 40–100, medium 100–250, large 250–500, extra-large 500 and up, a scheme that is contested rather than standard, and notes that a pump rated below the tank's volume may not deliver enough airflow. True, as far as it goes. Charterhouse also points out that air pumps move no water directly: circulation comes from rising bubbles dragging surface water down through the column.

So the pump's real job is defeating depth, then producing bubbles. Sized by gallons, you get the second without checking the first.

Same 20 gallons, three shapes, three different pumps

Volume tells you almost nothing. Three tanks holding the same 20 gallons ask for three different pumps, because the water sits at three different depths and depth is what the diaphragm has to fight.

A 20-gallon long is comparatively shallow, so depth is the least of the pump's problems and the volume band is doing most of the work. No source captured here gives a head figure for that depth, or a rated output for any named pump.

A 20-gallon tall is a deeper column of the same water, so on Bubble Magus's account it needs a more powerful pump. Beyond that, nothing captured here lets the requirement be put in numbers, and no named pump's rated pressure was captured to compare against it.

The 20-gallon cube sits between the two on depth. No source captured here identifies a depth at which flow ratings begin to overstate delivered output, or quantifies how cube proportions change the demand. If you are working out how cube dimensions fall out of volume, the footprint-against-volume figures by cube size set the depths you would be specifying against.

Charterhouse Aquatics puts it the other way round: a pump rated below the tank's volume may not deliver enough airflow. Both are true. Volume sets the floor on flow, depth sets the floor on pressure, and only one of those appears on the box.

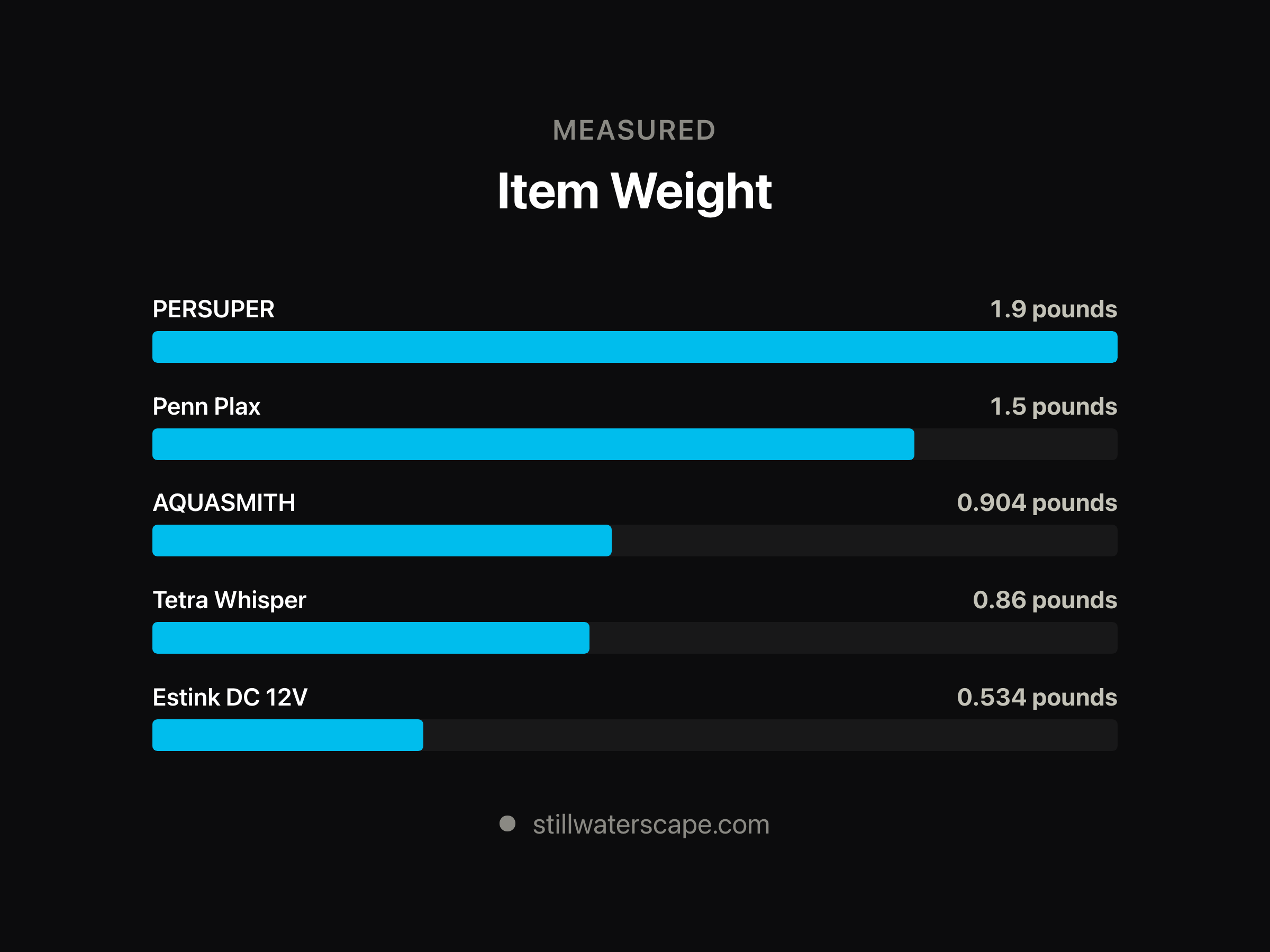

Product	Product Dimensions	Material	Item Weight	Air Flow Capacity	Suits
AQUASMITH	—	Acrylonitrile Butadiene Styrene	0.41 kg	1.8 liters per minute	Best for nano tanks
Tetra Whisper	3.9"L x 2.8"W x 5.5"H	Plastic	13.76 ounces	3.3 liters per minute	Best mainstream pick
Uniclife	5.1"L x 2.8"W x 2.5"H	Stone	—	64 gpm	Best dual-outlet starter
PERSUPER	—	—	1.9 pounds	10 liters per minute	Best for deep tanks
Estink DC 12V	86.61"L x 4.33"W x 5.51"H	Plastic	Approx. 1660g	68 liters per minute	Best 12V option
AQUANEAT	7.5"L x 5.5"W x 3.5"H	Plastic	—	5 gpm	Best for multiple tanks
Penn Plax	—	Plastic	1.5 pounds	1900 cubic_centimeters_per_minute	Best UL-approved

Spec columns quote the listings verbatim. “Suits” is editorial.

Sort it in ten seconds

• AQUASMITH, not for you if this matters: single outlet on this variant — no second line for a sponge filter.
• Tetra Whisper, not for you if this matters: this listing is non-UL listed.
• Uniclife, not for you if this matters: one knob governs both outlets, so the lines cannot be set fully independently.

Reading a label: the derating rule I use

A gallon rating on a box is a free-flow number, or close to it. Treat it as the output the pump makes into open air at sea level, then subtract for everything you ask it to push against. Here is the sequence I apply to every label.

• Read the volume band as a shallow-tank figure. Charterhouse Aquatics frames volume-matching as the first sizing step, and it works for standard 12-inch tanks; below that depth the band is honest, above it the band is optimistic.
• Allow extra output for depth beyond a standard tank. How much is not something any source captured here quantifies. Depth is named as a sizing factor but never given a number, and no named pump's rated output was captured.
• Allow something for ageing. Charterhouse Aquatics lists worn diaphragms alongside blocked air stones and kinked tubing as a cause of reduced bubble output that mimics undersizing, though no source captured here quantifies the decay or how often diaphragms need replacing.
• Let the device spec override the tank spec. Bubble Magus is explicit that sponge filter makers state their own required pump flow; follow that figure, not the gallon chart.
• Treat volume bands as blind to depth. Nothing captured here states a depth at which they stop applying, or supplies the head pressure ratings and maximum operating depths that would let a deep tank be sized properly.

Same discipline as sizing a heater by watts rather than by tank label.

Six failure signatures: undersized, oversized, or just blocked

Undersizing, oversizing and blockage can all present as "not enough bubbles". Charterhouse Aquatics notes that blocked air stones, kinked tubing and worn diaphragms produce faults that look like an undersized pump but are not. The symptoms separate cleanly if you look at what the air is driving rather than at the bubble count.

Undersized

• Charterhouse Aquatics says a pump rated below the tank's volume may not deliver enough airflow. Bubble Magus adds that sponge filter makers usually state a required pump size or flow rate of their own, which is the figure to follow. Beyond that, no source captured here describes the specific symptoms of an undersized pump.

Oversized

• Bubble Magus notes that a pump that is too powerful can create excessive turbulence, especially in a small tank. That is its own failure mode, not a harmless surplus. No source captured here describes what that looks like in a given tank.

Neither, just faulty

• Blocked air stone, kinked tubing or a worn diaphragm all cut output while the rating stays correct.

Which mistake can you undo? The oversized one. Charterhouse Aquatics notes it can be dialled back either with the pump's own output adjustment or with inexpensive airline control valves. An undersized pump has no such fix.

Splitting one outlet is not free capacity

Bubble Magus notes that a single-outlet pump can be split with gang valves rather than buying a multi-outlet model. What that does to the balance between two lines at different depths is not something any source captured here addresses. No page gives back-pressure thresholds for a stone at any depth, or covers how airline runs affect delivered output.

Airline control valves are the tool for trimming output, on Charterhouse Aquatics's account. No source captured here sets out a balancing procedure or how often it needs redoing.

Charterhouse Aquatics treats outlet count as a second sizing axis rather than a bonus, and I agree: single-outlet pumps suit one aquarium, one sponge filter or one air stone, while dual-outlet pumps cover larger tanks, multiple air stones, two aquariums or multiple accessories. Charterhouse Aquatics also notes that commercial pumps with four or more outlets exist for fish rooms and breeding systems.

AQUASMITH — Best for nano tanks

• Rated 14 kPa on just 1.5 W, enough head for shallow desktop depths
• Listed under 30 dB with a floating motor, 5 mm ABS shell and anti-vibration pads
• But: Single outlet on this variant — no second line for a sponge filter
• But: 29 GPH (1.8 L/min) is the wrong end of the scale for deep or heavily stocked tanks

Tetra Whisper — Best mainstream pick

• 3.3 L/min airflow rated specifically for 20-40 gallon tanks
• Dome shape, suspended motor and sound-dampening chambers target noise
• But: This listing is non-UL listed
• But: No maximum pressure figure published, so depth suitability has to be inferred from gallons

Uniclife — Best dual-outlet starter

• 16,000 Pa (0.016 MPa) rated pressure at 4 W, adequate for typical tank depths
• Rotary knob controls both outlets for balancing two lines
• But: One knob governs both outlets, so the lines cannot be set fully independently
• But: Airflow drops as the intake cotton clogs; the filter must be replaced by the owner

PERSUPER — Best for deep tanks

• 0.022 MPa maximum pressure, the highest rated head among the mains-powered picks here
• Up to 10 L/min (158 GPH) from a 5 W motor
• But: No tubing, check valve or air stones included — accessories must be bought separately
• But: 20-600 gallon claim is very broad for a 5 W pump

Estink DC 12V — Best 12V option

• Runs on DC 12 V at 3.5 A, so it can be fed from a battery or vehicle supply
• 68 L/min flow at 0.068 MPa, far beyond any of the aquarium-sized pumps here

AQUANEAT — Best for multiple tanks

• Four outlets from a single 300 GPH total output
• 16 ft of tubing, air stones and valves supplied
• But: Largest footprint of the aquarium pumps at 7.5 x 5.5 x 3.5 in
• But: Splitting four ways cuts pressure available to any one deep line

Penn Plax — Best UL-approved

• UL approved, unlike some pumps in this category
• 1900 cc/min across two outlets that adjust separately
• But: Airline tubing and air stones sold separately
• But: No maximum pressure specification, so deep-tank suitability is unclear

Which of these seven suits which tank

Take the 20-gallon tall from the opening. Sizing it on depth would need a head figure for the column and a rated pressure for each candidate pump, and no source captured here supplies either. Every sizing statement available is a retailer's or vendor's summary, with no named pump's rated volume, output or wattage reproduced.

Everything else here has to be judged on inference, and the criteria have to be applied evenly: rated pressure, rated flow, outlet count, what arrives in the box, and what supply it needs.

Charterhouse Aquatics names Eheim, Oase, Tetra, Fluval, JBL, Aquael and Sicce as popular quality air pump makers, but no specification sheet for any individual model was available to compare.

For the 20-gallon tall specifically, budget separately for tubing, stones and a check valve. Charterhouse Aquatics advises siting the pump above the water line where possible and always fitting a check valve where it has to sit below, to stop water siphoning back into the pump if power fails.

None of these were tested. Every sizing statement above comes from a retailer's or vendor's summary rather than from a manufacturer specification sheet or a standard. What I would watch is whether makers start publishing pressure decay over a diaphragm's service life; nothing captured here does.

Which one, then?

AQUASMITH, best for a shallow desktop or nano tank in a bedroom, where the pump has to disappear both visually and audibly.

If your case is different:

• For a standard 20-40 gallon community tank where the buyer wants a named-brand pump sized by the box rather than by pressure figures: Tetra Whisper.
• For running two air lines in one tank with independent control, from a pump that arrives with the stones already in the box: Uniclife.
• For a deep tank or tall sump where the reader needs headroom in pressure and prefers stepped, repeatable airflow settings: PERSUPER.

The AQUASMITH’s weak spot: single outlet on this variant — no second line for a sponge filter
